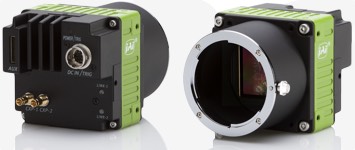

JAI SP-20000M-CXP2 | SP-200000C-CXP2
CoaXPress Camera
CMOSIS CMV20000 Sensor
5120x3840 Resolution
Area Scan Camera

get a quote for this product

JAI Spark Series Industrial Cameras Features

5 to 44.7 megapixels
Frame rates up to 253 fps
Vibration and shock resistance
GigE, Camera Link, USB3, or CoaxPress interface

SP-20000M-CXP2 | SP-200000C-CXP2 Camera Features

Large 41mm diagonal CMOSIS sensor with global shutter
Ultra high resolution and high speed
In-camera CMOS pattern correction
F-mount lens mount

SP-20000M-CXP2 | SP-200000C-CXP2 Datasheet

SP-20000M-CXP2 | SP-200000C-CXP2 Manual

Sensor Spec
All JAI Cameras

Manufacturer:	JAI	Model:	SP-20000M-CXP2 SP-200000C-CXP2	Total Pixels:	19,660,800
Resolution:	5120 (h) 3840 (v)	Sensor Size:	41mm	Color/B & W:	Color / Monochrome
Frame Rate (fps):	35	Sensor Type:	CMOS	Sensor Device:	CMOSIS CMV20000
Pixel Size(µm):	6.4(h) 6.4(v)	A/D Bits:	12	Shutter Speed:	100µs to 8000000µs
Interface:	CoaXPress	Voltage(VDC):	12-24V	Power(watts):	5.4
Lens Mount:	F	Shutter Type:	Global	Weight(grams):	320
S/N Ratio(dB):	call	External Trigger:	YES	Dimensions(mm):	84.5Lx62Wx62H

JAI Camera Resources

click to calculate FOV/FL for this camera

Lens Calculator

Spark Series high-speed
20-megapixel industrial camera
